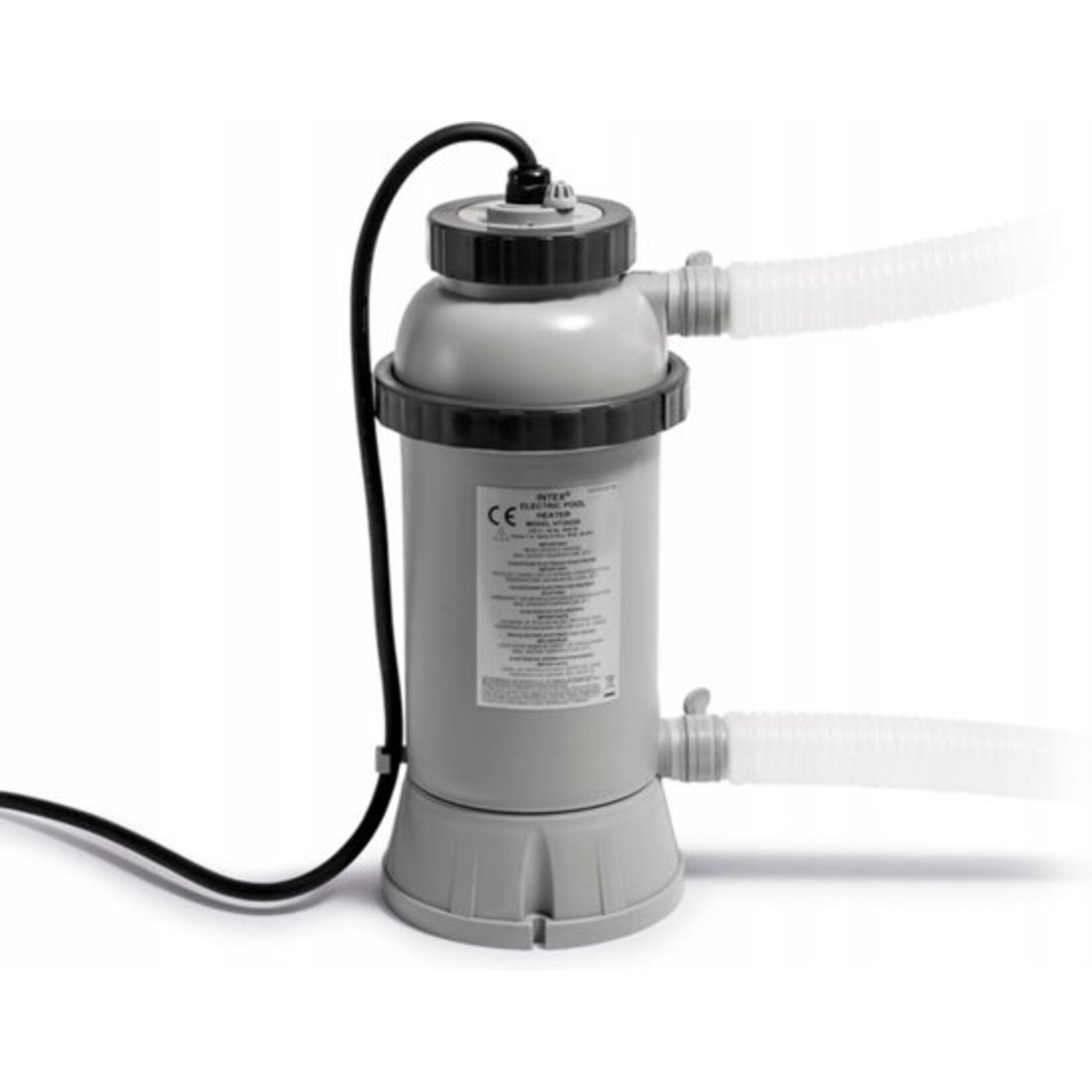

This electric pool heater is compatible with all Intex Easy Set and Metal Frame pools with a diameter of 457 cm or less. Also suitable for Bestway pools. This heater warms your water by 3°C per hour per cubic meter of water. For 10 m³, this is 0.3°C per hour. 3 kW. The pump MUST be turned off when using the pool.

Installation

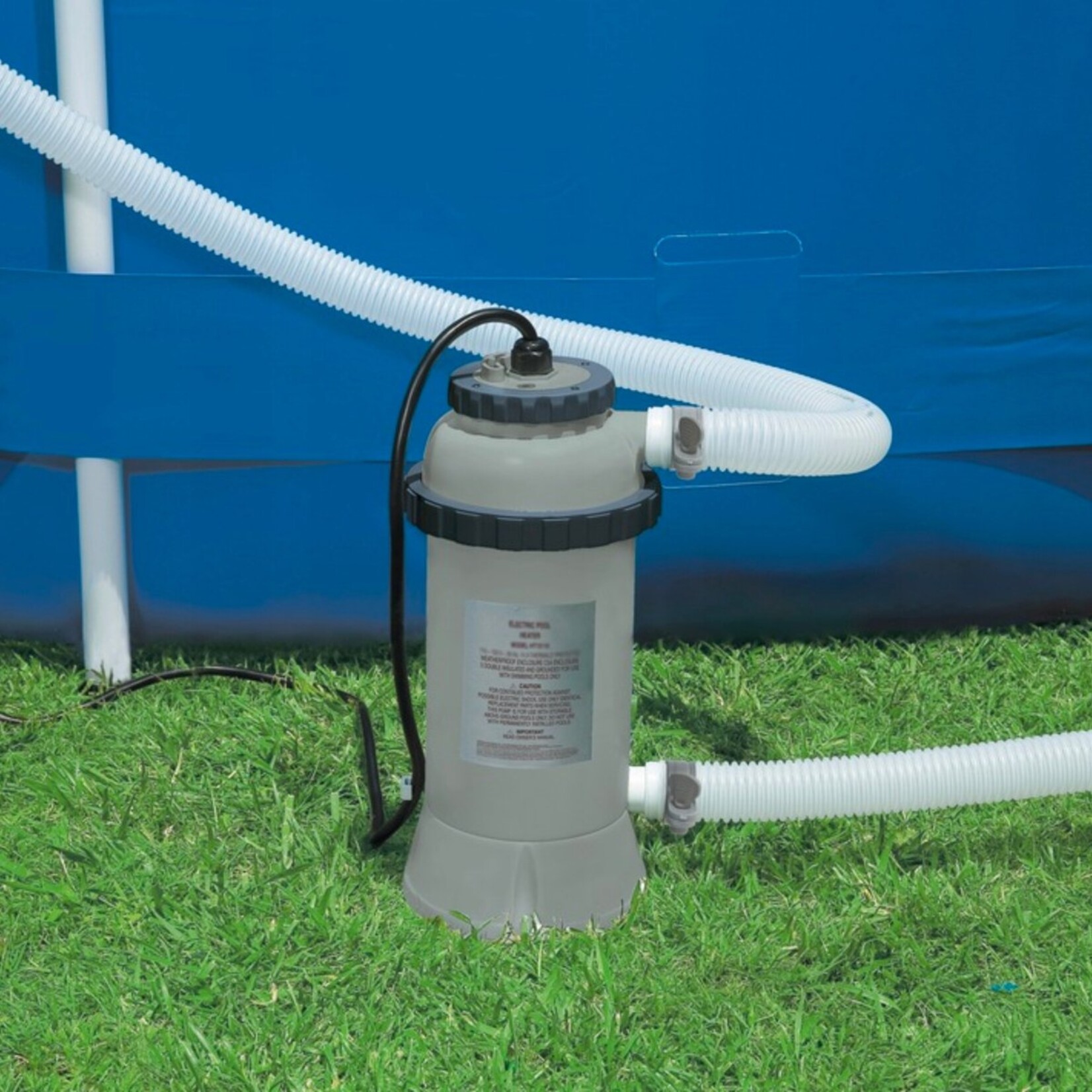

Installation is very simple. Install the electric heater after the filter pump using the included accessories, plug it in, and press the reset button on the plug. With a turn of the knob, your pool will start heating up right away. The Intex pool heater uses 32 mm connections and simply plugs into a standard outlet (220–240 volts).

Included: Important! An electric heater must always be connected to the same electrical circuit as the filter pump. This prevents the heater from operating when there is no water flow. The heater must always be filled with water. Install the electric heater on the discharge side of the pump and never on the suction side. The filter pump must have a capacity between 1.9 and 9.5 m³.

• 3 kW electric heater with ground-fault circuit interrupter (GFCI) plug
• 1 connection hose, 155 cm long with a diameter of 32 mm
• Thermometer
• Built-in thermostat
• Clamping rings
